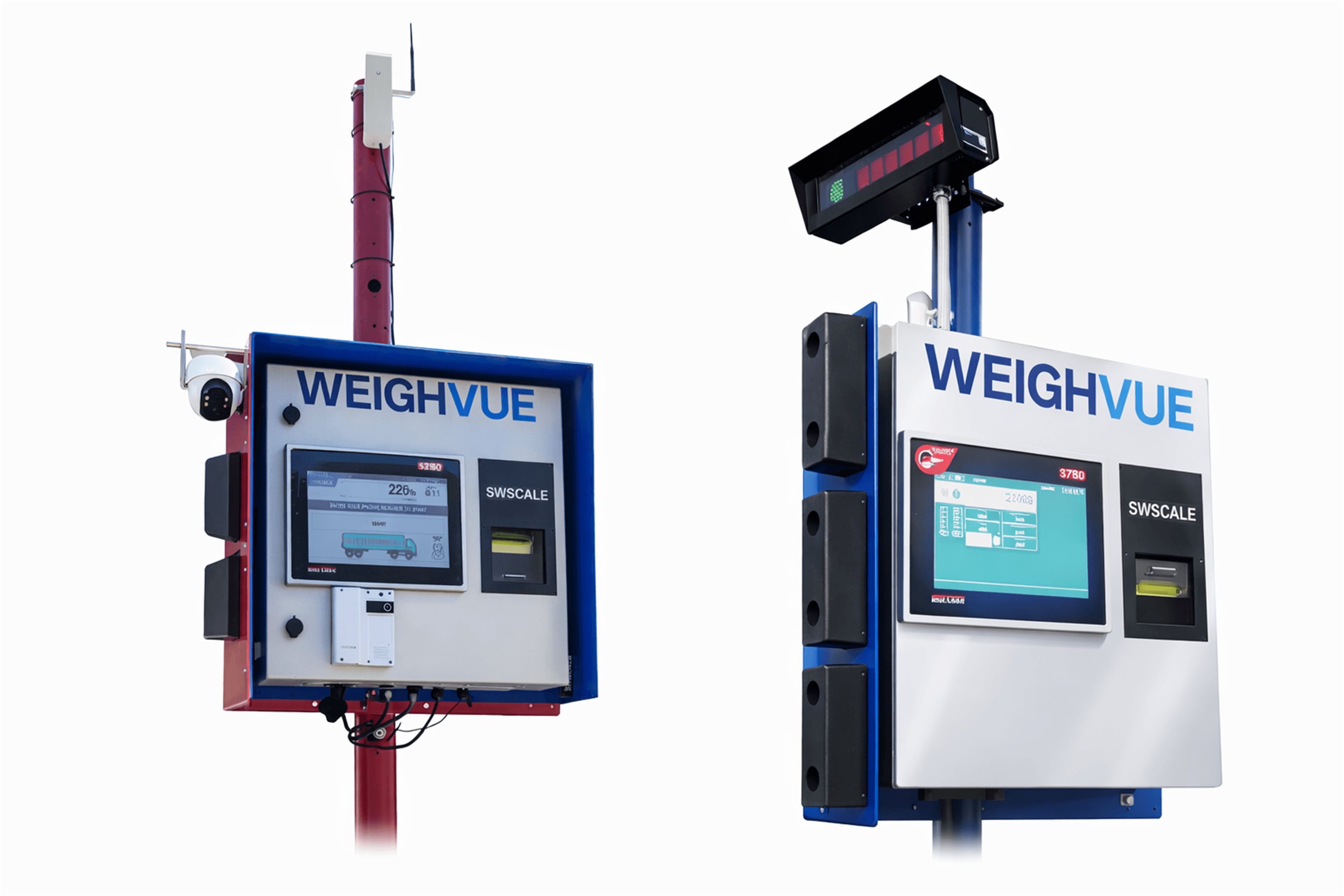

WeighVue Unattended Terminals
Purpose-built kiosk terminals that let drivers weigh in and out without ever leaving the cab. From RFID identification to automated ticketing and credit card payment, every transaction is handled at the scale, so your operation keeps moving around the clock.
Built for the Harshest Environments
Every terminal ships in a heavy-duty steel enclosure engineered to withstand extreme temperatures, dust, rain, and constant daily use. No consumer-grade shortcuts.
12" Color Touchscreen
Large, vivid display with an intuitive interface that guides drivers through each step. Glove-friendly and designed for fast, error-free input.
1,500 NIT Sunlight-Readable Display
Ultra-bright panel stays perfectly legible in direct sunlight. No squinting, no shading, no delays on the scale.
Heavy-Duty Steel Enclosure
Powder-coated steel housing built to withstand dust, rain, temperature swings, and the daily abuse of an active scale yard.
Internal Heater & Fan
Thermostatically controlled climate system keeps electronics within operating range from sub-zero winters to scorching summers.
Dual Serial Ports
RS-232, RS-485, and RS-422 connections for direct communication with scale indicators, gate controllers, traffic lights, and other peripherals.
460 MB Onboard Database
Store hundreds of thousands of transactions locally. If your network goes down, the kiosk keeps weighing and syncs when connectivity returns.
Direct Thermal Printer
High-speed thermal printer produces clear, weather-resistant tickets on the spot. No ink cartridges to replace, ever.
Industrial PC with Ethernet & Wi-Fi
Fanless industrial computer rated for continuous operation. Connect via wired Ethernet or built-in Wi-Fi for flexible site deployment.
Advanced A/D Cards
High-resolution analog-to-digital conversion supports axle-by-axle weighing and multi-platform configurations for maximum accuracy.
Identify Drivers in Seconds
Multiple identification methods ensure every driver can check in quickly, regardless of the credentials they carry. Pair any method with pre-loaded customer, hauler, and material records for one-touch transactions.
RFID
Proximity cards or long-range tags identify trucks automatically as they approach the kiosk.
Barcode & QR
Scan printed barcodes or phone-based QR codes for instant, touchless check-in.
Manual Entry
Drivers without credentials can key in account numbers or names directly on the touchscreen.
Automate the Entire Transaction
From the moment a truck rolls onto the scale to the printed ticket in the driver's hand, the kiosk handles every step. Operate fully unattended 24/7, or run semi-automated with remote operator oversight when needed.
Automated Gate Control
Open and close entry and exit gates directly from the kiosk based on transaction status, weight tolerances, or custom business rules.
In-Ground Loop Detectors
Detect vehicle presence on the scale automatically. The kiosk knows when a truck is in position and prompts the driver to begin.
Stop/Go Traffic Display
LED traffic light signals direct drivers onto and off the scale, keeping traffic flowing and preventing collisions in busy lanes.
Pay-to-Weigh Credit Card
Integrated EMV card reader lets walk-in customers pay at the scale. Transactions settle automatically with no back-office invoicing required.
Automated Ticket Printing
Tickets print the instant a transaction completes. Configurable templates include gross, tare, net weights, timestamps, and custom fields.
Remote Operator Intercom
Built-in intercom connects drivers to a live operator for exceptions or assistance, keeping fully unattended sites running smoothly.
Flexible Input Options
Choose the input method that fits your workflow. Every kiosk ships with a responsive 12" touchscreen, and you can add a full QWERTY keyboard or a simplified 12-key numeric keypad for operations that need physical keys.
Touchscreen
Large on-screen buttons and prompts guide drivers through each step. Glove-friendly and readable in direct sunlight.
QWERTY Keyboard
Full keyboard for sites where drivers need to enter names, PO numbers, or product codes manually.
12-Key Numeric Pad
Compact numeric keypad for quick PIN or account number entry. Ideal for high-volume sites with pre-registered drivers.
Powered by WeighVue DB+
Every unattended terminal runs WeighVue DB+ under the hood, giving you the same powerful database, reporting, and compliance tools your operators rely on. Customer, hauler, and material records stay synchronized, and every transaction is logged for complete traceability.
Compatible with standard 1280 programs and configurable as a weigh-in/weigh-out adapter for integration with your existing scale infrastructure.*
*Integration requires that the existing infrastructure supports a communication protocol accessible by the terminal.
Learn About DB+Why Go Unattended?
Drivers Stay in the Cab
No more climbing in and out of trucks. Drivers complete every step from the vehicle, improving safety and saving time on every load.
Eliminate Manual Errors
Pre-loaded records and automated data capture remove handwriting mistakes, miskeyed weights, and duplicate tickets from your operation.
Seamless Traffic Flow
Automated gates, loop detectors, and traffic signals keep trucks moving through multi-lane scale yards without bottlenecks or idle time.
